Chain Link Conveyor Belting

Save Your Customer's Money But Workable

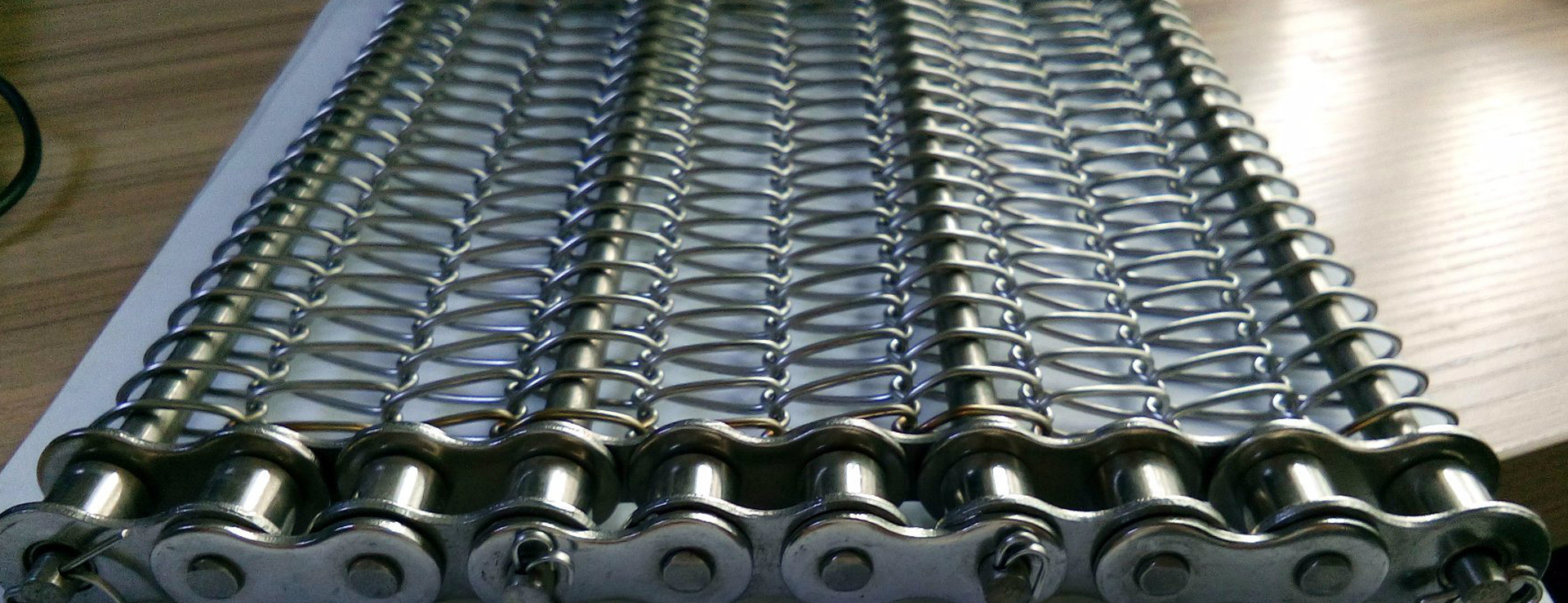

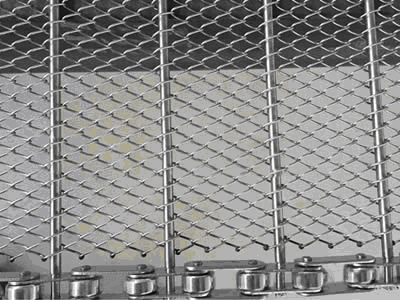

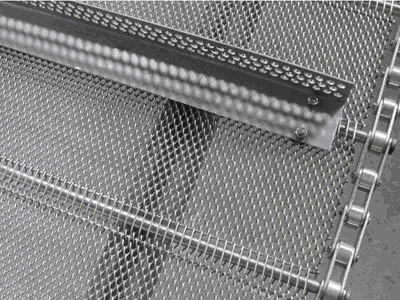

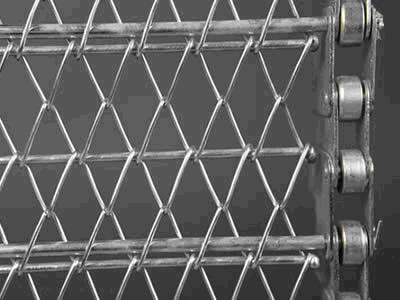

Chain l ink conveyor belting consists of interwoven successive spiral wire, which looks like chain link fencing. This universal conveyor belt is the simplest wire belt but functional and economical in conveying light- duty applications. Owing to its large open area, chain link belt makes itself an ideal choice for drying, cooling and heating where energy efficiency is the most important.

Different from balanced weave belt consisting of alternating left- hand and right- hand spiral coils chain link conveyor belting is constructed by unidirectional coils. For a friction driven belt, the belt features alternating sections of left- hand then right- hand. To counteract the tracking issues caused by the unidirectional coil pattern, cross rods are inserted across the belts - one is right- hand woven and the other is right- hand woven.



  •  Material: carbon steel, SS 201, SS 304, SS 316.
  •  Wire diameter: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
  •  Spiral pitch: 6 mm to 40 mm.
  •  Rod pitch: 5 mm to 30 mm.
  •  Belt width: 200 mm to 5, 000 mm.
  •  The most economical belt for low load conveying applications.
  •  Large open area ideal for drying and cooling.
  •  Supplied with welded or knuckled edge finishes.
  •  Friction - driven belt.
  •  Stainless steel T- 304 available.
  •  Welded or knuckled edge finish.
  •  Cooling.
  •  Drying.
  •  Lift guards.
  •  Heating.
  •  Transport light- duty products.
  •  Industrial curtains.
Item No. Wire diameter Spiral coil number Belt thickness
mm mm
CLB01 2.8 84 10 ± 0.5
CLB02 2.2 100 8 ± 0.4
CLB03 1.6 69 7 ± 0.4
CLB04 1.2 100 6.5 ± 0.4
CLB05 1.1 182 6 ± 0.4
CLB06 0.9 153 6 ± 0.4
