Heavy Duty Flat Wire Belts

Premier Choice For Heavy Loading

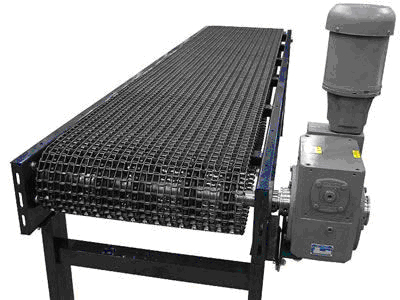

Heavy duty flat wire belts has all the characteristics of standard duty belts except heavier cross rods and thicker flat strip. 1/2" wide X 0.062" thick flat strip and 6 gauge connector rod gives the belt about 2.5 times strength than the standard one. Hence, it's the choice for heavy duty conveying system.

Product Description

Item: Heavy duty flat wire belts.
Flat strip: 1/2" wide × 0.062" thick, round edge.
Cross rod: 6 gauge, high tensile strength.
Material available:
- Low carbon galvanized steel C 1015.
- C 1050 high carbon steel.
- T- 304 stainless steel.
- T- 306 stainless steel.
Specifications: see the table below.

Features & Benefits

2.5 times stronger than standard duty flat wire belt.
Straight- running belt.
High strength- to- weight ratio.
Positive- driving belt.

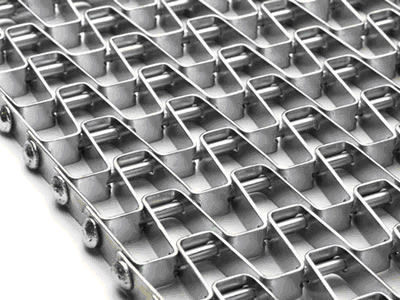

Welded button edge or clinched edge.
Flat carrying surface.
Easy to clean and to install.
Wide range of aperture configurations.
Very large open area.

Typical Applications

Cooling.
Heating.
Sieving.
Drying.
Sorting.
Ovens.
Washing.
De-watering.
Drainage.
Breading.
Food baking, cooling and freezing.
Chemical industry.
Annealing.

Item No.	Mesh	Flat strip	Cross rod	Edge Finish	Width
	Mesh	Flat strip	Cross rod		Min.	Max.
	Inch	inch	gauge		inch	inch
HFW01	1× 1	1/2 × .062	6 gauge	Clinched selvage	10	192
HFW02	1/2× 1	1/2 × .062	6 gauge	Clinched selvage	10	192
HFW03	1 × 1	1/2 × .062	6 gauge	Welded selvage	3	192
HFW04	1/2 × 1	1/2 × .062	6 gauge	Welded selvage	4	192
HFW05	1/2 × 1 Modified	1/2 × .062	6 gauge	Welded edge	6	192
